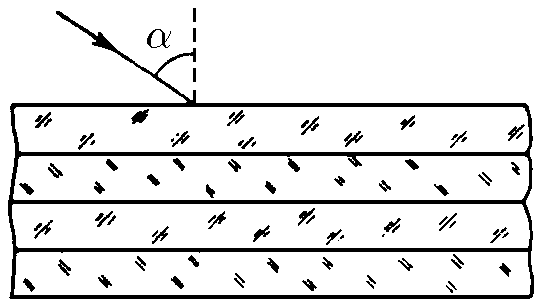

13.2.11. What minimum angle of incidence should have a light ray that incides over a group of plane transparent plates (each one with refraction index decreasing $k$ times respect to the upper to it) such that the ray doesn't pass the group? The refraction index of the upper plate is $n$ and the amount of plates is $N$.
Solution
Let's consider the following figure

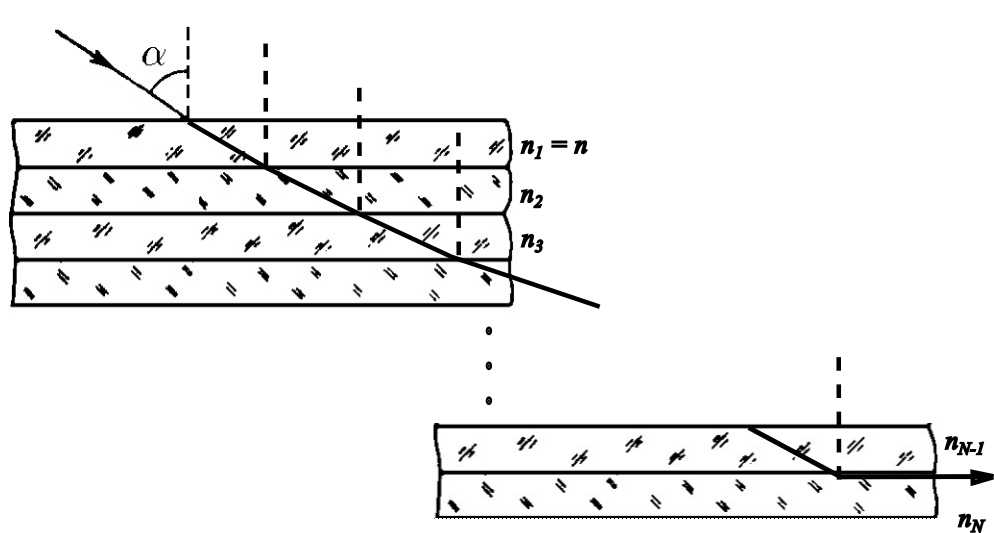

Ray's path through plates
Applying Snell's law for each interphase between media $$n_0 \sin{\alpha} = n_1 \sin{\alpha_1} = n \sin{\alpha_1}$$$$n \sin{\alpha_1} = n_2 \sin{\alpha_2}$$$$n_2 \sin{\alpha_2} = n_3 \sin{\alpha_3}$$$$\vdots$$$$n_{N-1} \sin{\alpha_{N-1}} = n_N \sin{\frac{\pi}{2}} = n_N$$ It's known that $n_2 = \frac{n}{k}$,$n_3 = \frac{n_2}{k}=\frac{n}{k^2}$, and so on. Then, $n_N=\frac{n}{k^{N-1}}$. The $N$-th refraction angle is $\frac{\pi}{2}$ beacause the ray doesn't pass this latest plate, i.e., there is a total reflection. $$n_m \sin{\alpha} = \frac{n}{k^{N-1}}$$ If exterior medium is air, $n_m = 1$,$$\boxed{\sin{\alpha}=\frac{n}{k^{N-1}}}$$ This angle $\alpha$ is the critical angle of the internal total reflection for this group of plates.
