Edits to “Statement”, “Solution”, “Answer”

astrosander edited
revision #13951 parent #12984 ← older
@@ -1,13 +1,16 @@
### Statement
−$3.3.11.$ Not completed period

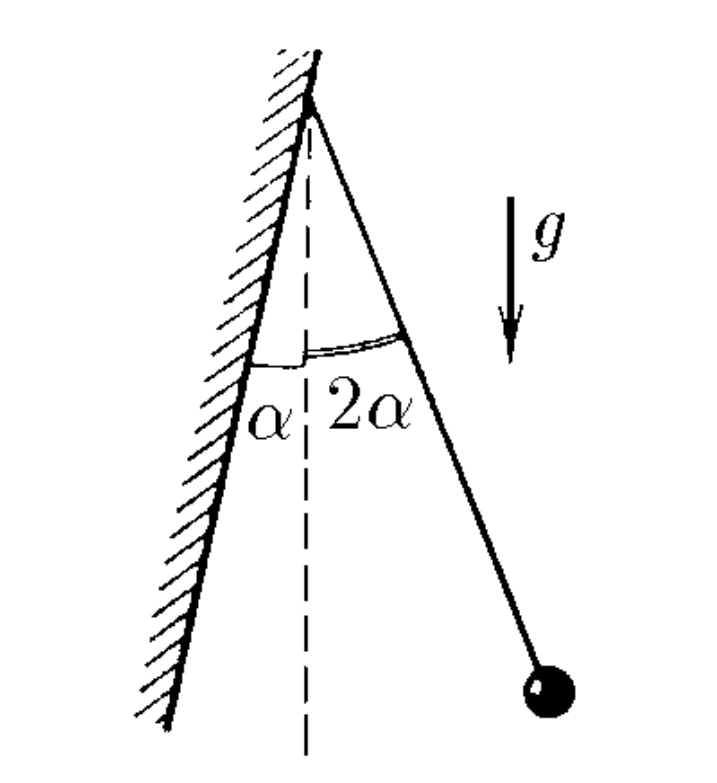

+$3.3.11.$ A pendulum of length \( l \) is suspended near an inclined wall. The pendulum is displaced from the vertical by a small angle that is twice the angle of inclination of the wall from the vertical, and then released. Find the period of oscillations of the pendulum, assuming that the collisions with the wall are perfectly elastic.
−__Statement__:
−$3.3.11.$
−![|717x783, 50%](../../img/3.3.11/Screenshot_20250125-180006_Drive.jpg)
−$$Pic.1.$$
−A pendulum of length $L$ is suspended from an inclined wall. The pendulum is tilted from the vertical by a small angle, twice the angle of inclination of the wall to the vertical, and released. Find the period of oscillation of the pendulum if the impacts with the wall are perfectly elastic. (Look Pic1)
+![For problem $3.3.11$|717x783, 30%](../../img/3.3.11/Screenshot_20250125-180006_Drive.jpg)
−### Solution and Answer
−![|3578x1696, 50%](../../img/3.3.11/20250125_175434.jpg)
−By Adalat Huseynli
+

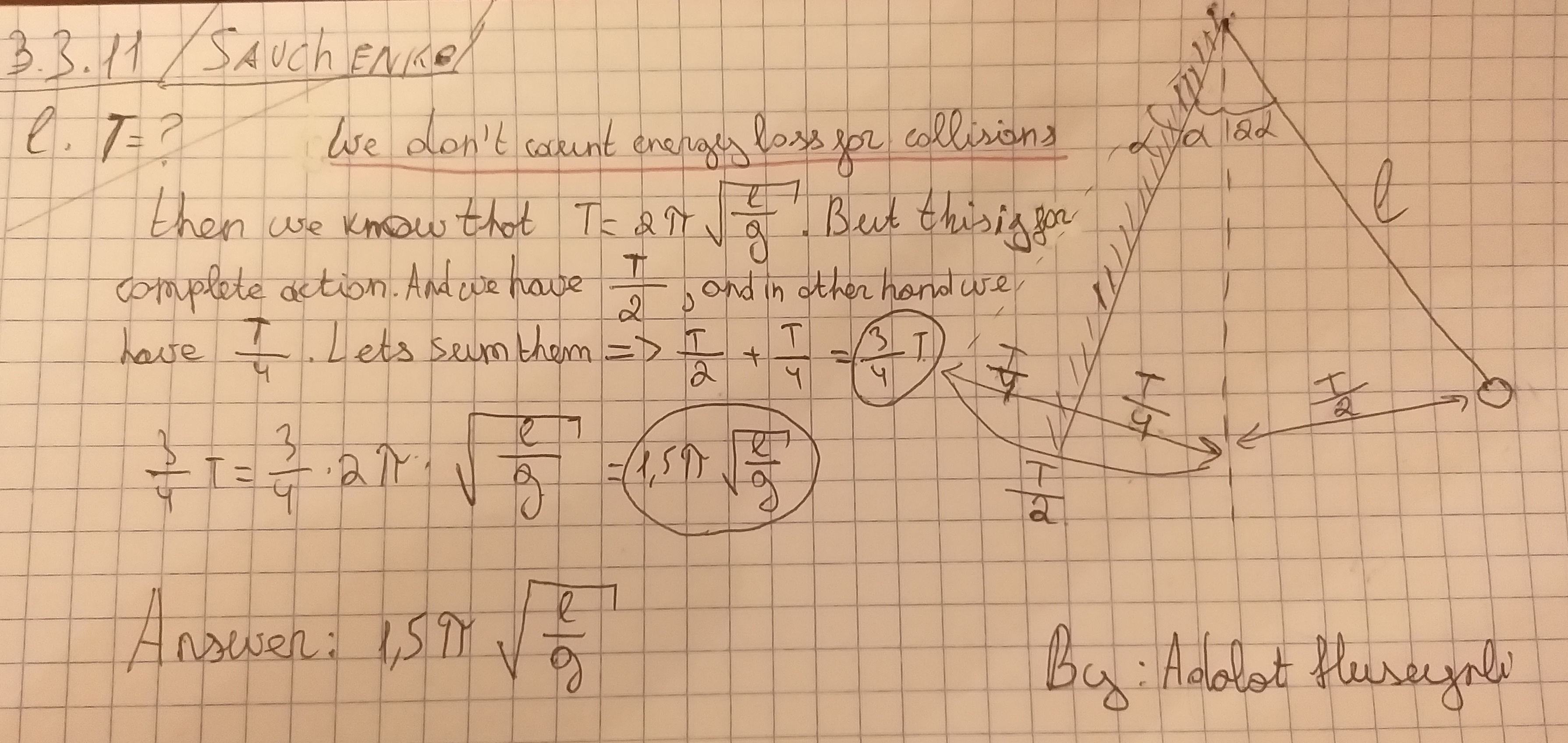

+### Solution
+
+![|3578x1696, 100%](../../img/3.3.11/20250125_175434.jpg)
+
+#### Answer
+
+\[
+v = -A\omega \sin \omega t, \quad a = -A\omega^2 \cos \omega t, \quad F = -m\omega^2 x = -A m \omega^2 \cos \omega t, \quad k = m \omega^2.
+\]
