			### Statement

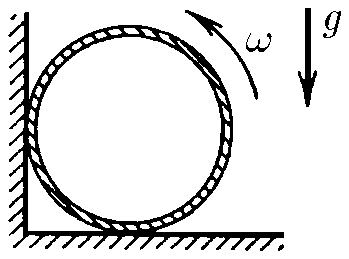

			$2.7.6.$ A thin-walled cylinder of radius $R$ was spun up to an angular velocity $\omega$ and placed in a corner, as shown in the figure. The coefficient of friction between the corner walls and the cylinder is $\mu$. How many revolutions will the cylinder make before it comes to a complete stop?

			![ For problem $2.7.6$ \|372x281, 31%](../../img/2.7.6/statement.png)

			### Solution

			![ Forces acting on the cylinder \|924x709, 39%](../../img/2.7.6/draw1.png)

			Conditions of equilibrium:

			$$
			\left\\{\begin{matrix} O'X\text{: }F_{fr2} = N_1 \\\ O'Y\text{: }F_{fr1}+N_2 = mg \\\ \end{matrix}\right.
			$$

			From where

			$$
			\left\\{\begin{matrix} \mu N_2=N_1 \\\ \mu N_1+N_2=mg \\\ \end{matrix}\right.
			$$

			Let's find friction force

			$$
			F_{fr}=F_{fr1}+F_{fr2}
			$$

			$$
			F_{fr}=\mu (N_1+N_2)=\mu N_2(1+\mu )
			$$

			Considering, $mg = N_2(1+\mu^2)$:

			$$
			N=\frac{mg}{1+\mu^2}
			$$

			According to rotational motion dynamics, the sum of moments of external forces can be written as

			$$
			M=I\varepsilon = mR^2\varepsilon=F_{fr} R
			$$

			From where, absolute value of angular acceleration is found as

			$$
			\varepsilon = \frac{M}{I} = \frac{F_{fr}}{mR}
			$$

			$$
			\varepsilon = \frac{\mu (1+\mu )N_2 }{mR}
			$$

			$$
			\varepsilon = \frac{\mu (1+\mu )}{1+\mu^2} \frac{g}{R}
			$$

		@@ -59,7 +59,7 @@Solution
			The angle by which the cylinder will rotate to the moment of total stop is

			$$
		−	\varphi=\frac{\omega^2t}{2\varepsilon }
		+	\varphi=\frac{\omega^2}{2\varepsilon }
			$$

			Until the total stop, the cylinder will make $N$ total turnovers

			$$
			\varphi=2\pi N
			$$

		@@ -71,7 +71,7 @@Solution
			From where

			$$
		−	N=\frac{\omega^2t}{4\pi\varepsilon }
		+	N=\frac{\omega^2}{4\pi\varepsilon }
			$$

			$$
			\boxed{N=\frac{1+\mu^{2}}{4\pi\mu (1+\mu )}\frac{\omega^{2}R}{g}}
			$$

			#### Answer

			$$
			N=\omega^{2}R(1+\mu^{2})/[4\pi g\mu (1+\mu )]
			$$
