$1.3.2.$ a. From the top point of the circle, a ball begins to slide along a smooth chute at an angle $\varphi$ to the vertical. How long will it take for it to reach the circle, if its diameter is $D$?
b. From point $A$, small beads begin to slide along the spokes with different slopes at the same time without friction. What curve will the beads be on at time $t$?
### Solution
a) A ball will move along a smooth chute with acceleration equal to the projection of the free-fall acceleration in the direction of motion, i.e.
$$
a = g \cdot\cos{\varphi}
$$
The displacement of the ball is the chord of a circle of diameter $D$, the magnitude of which is related to the diameter, by the following relation
$$
r = D \cdot\cos{\varphi}
$$
Let's write further the equation of accelerated motion of the ball and from it find the time of motion

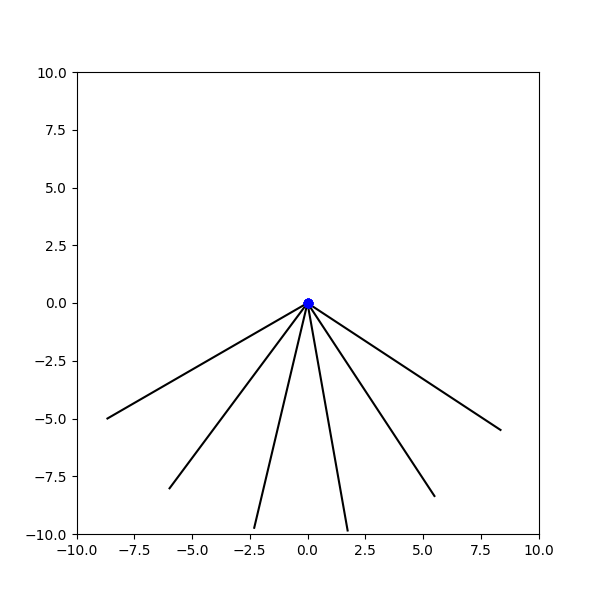

b) Note that the expression $(1)$ does not include the value of the angle, so all balls will be dropped simultaneously. They will lie on a circle of radius$r = g t^2/2$, as shown in the animation
+
b) Note that the expression $(1)$ does not include the value of the angle, so all balls will be dropped simultaneously. They will lie on a circle of diameter $r = g t^2/2$, as shown in the animation
#### Answer
a. $t = \sqrt{2D/g}$
−
b. On a circle of radius$\frac{gt^{2}}{2}$ with top point $A$.
+
b. On a circle of diameter $\frac{gt^{2}}{2}$ with top point $A$.
