13.2.14. a. A light beam passes through a wedge with a small angle $\alpha$ at the vertex, which is perpendicular to the front face of the wedge. Prove that the angle of deflection of the ray from the initial direction is approximately $(n − 1) \alpha$. Refractive index of the wedge $n$. b. A light ray passes through a wedge with a small angle $\alpha$ at the vertex, which falls at a small angle $\gamma$ to the normal to the front surface of the wedge. Prove that the angle of deflection of the light beam from the initial direction is approximately $(n − 1) \alpha$. Refractive index of the wedge $n$. c. Print the formula for the focal length of a thin lens. The radii of curvature of the lens surface are $R_1$ and $R_2$, and the refractive index of the lens material is $n$.
For problem 13.2.14
Solution
1. Hitting the first surface
Let's imagine there is a parallel lays of light entering the lens with refractive index $n_1$ from media with refractive index $n_0$, and after lens there is a media with refractive index $n_2$.

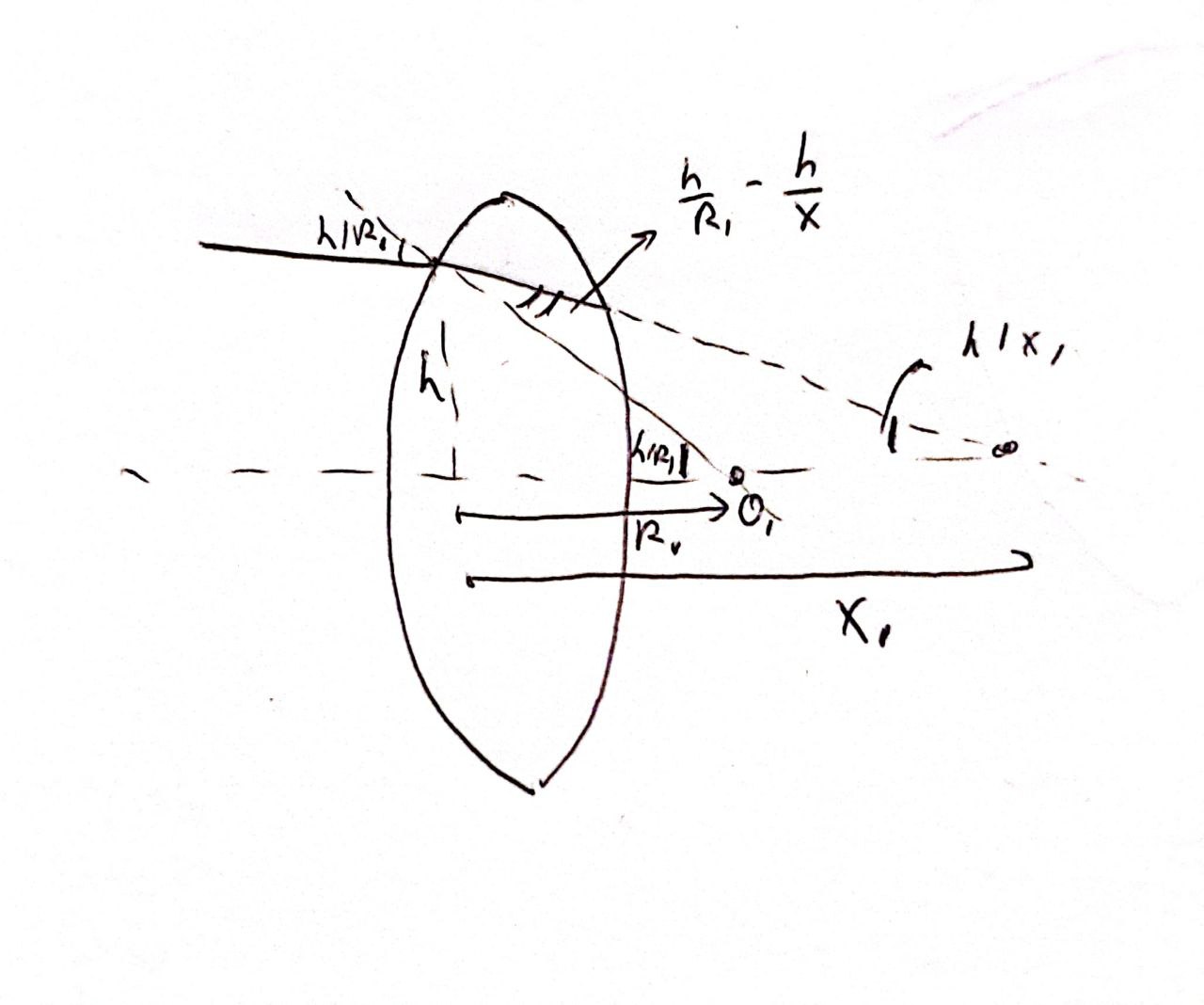

First, let's consider the moment when ray hits front of lens at the point $h$ above optical axis.
As shown in the picture, the incidence angle is $$\tan(\alpha) \approx \frac{h}{R_1} \approx sin{(\alpha)} \approx \alpha$$ where $R_1$ is the curvature radius of first surface.
If there wasn't second surface, the ray after refraction will cross the optical axis at point $x_1$, and angle is $\tan(b) \approx \sin(\beta) \approx \beta = x_1/h$. So, the refraction angle is $$\alpha - \beta = \frac{h}{R_1} - \frac{h}{x_1}$$ And by Snell's law: $$n_0 \cdot \frac{h}{R_1} = n_1 \cdot \left(\frac{h}{R_1} - \frac{h}{R_2}\right)$$
2. Hitting the second surface

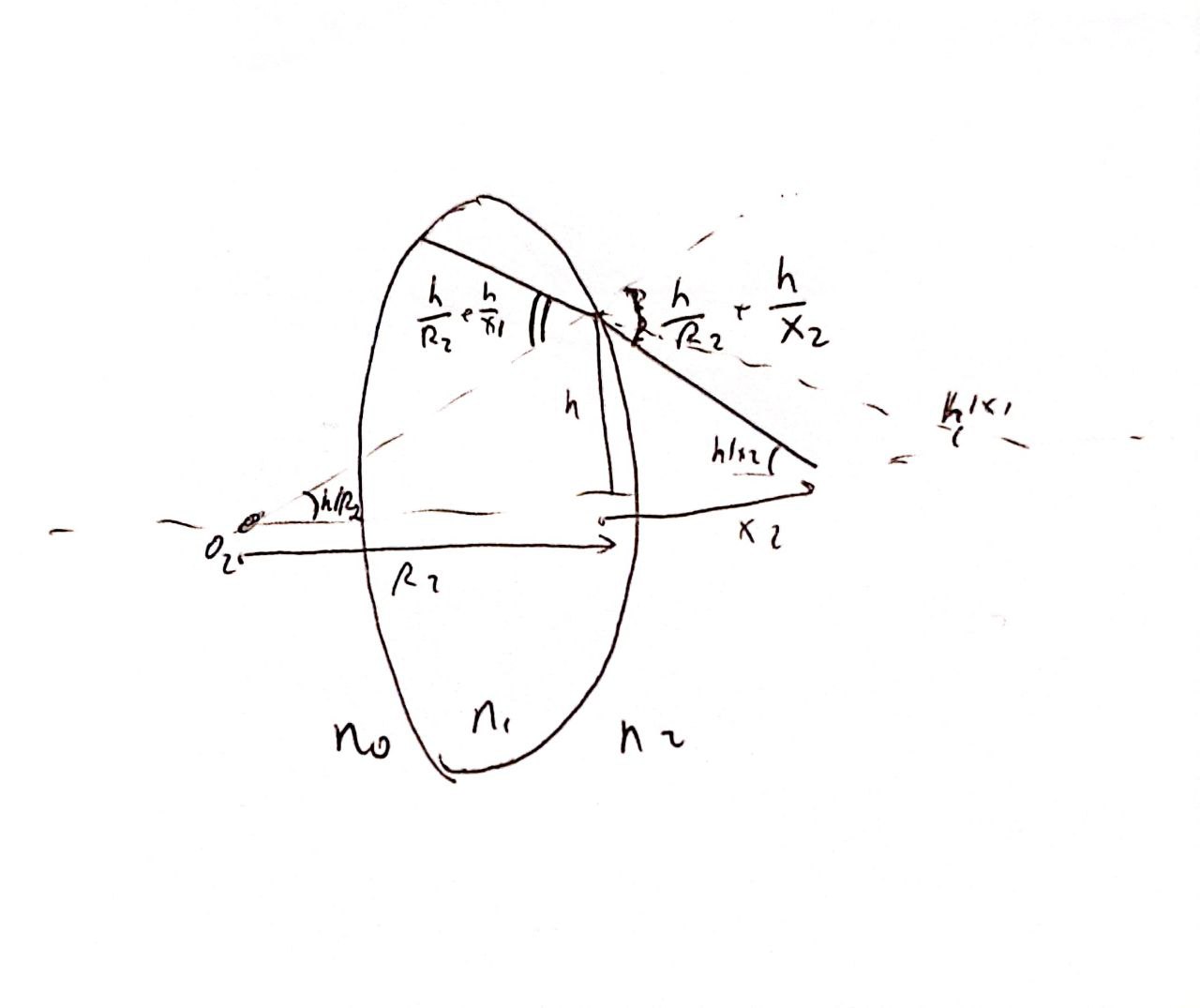

After hitting the second surface, the ray will cross the axis at point $x_2$, which we want to find.
The incidence angle is $$\alpha_2 = \frac{h}{R_2} + \frac{h}{x_1}$$ And the refraction angle is $$\beta_2 = \frac{h}{R_2} + \frac{h}{x_2}$$ By Snell's Law: $$n_1 \cdot \alpha_2 = n_2 \cdot \beta_2$$ Therefore: $$n_1 \cdot \left(\frac{h}{R_2} + \frac{h}{x_1} \right) = n_2 \cdot \left(\frac{h}{R_2} + \frac{h}{x_2} \right)$$ So, we have a system of equations: \begin{cases} n_0 \cdot \frac{h}{R_1} = n_1 \cdot \left(\frac{h}{R_1} - \frac{h}{R_2}\right)\ n_1 \cdot \left(\frac{h}{R_2} + \frac{h}{x_1} \right) = n_2 \cdot \left(\frac{h}{R_2} + \frac{h}{x_2} \right) \end{cases} Solving it, we can find $\frac{1}{x_2}$: $$\frac{1}{x_2} = \left(\frac{n_1}{n_2} -1 \right) \cdot \frac{1}{R_2} + \left(\frac{n_1}{n_2} - \frac{n_0}{n_2} \right) \cdot \frac{1}{R_1} = \frac{1}{F}$$ In this problem, we have $n_0 = n_2 = 1, n_1 = n$
So, we have $$\boxed{\frac{1}{F} = \left(n-1 \right) \cdot \left(\frac{1}{R_1} + \frac{1}{R_2} \right)}$$
